- Size: 2704mmx1226mmx2140mm
- Place of Origin: Jining,China
- Brand Name: Construction Machinery
- Model Number: SF30
- Weight: 3000.000 kg
- :
- :
- :
- :
- :
- :
- :
Model | SF30 | SF30T | ||||
Rated capacity | kg | 3000 | 3000 | |||
Load center | mm | 500 | ||||
Power type | Diesel | |||||
Engine Engine | Model | A490BPG | ||||
Rated output | kw/rpm | 37/2650 | ||||
Rated torque | N.m/rpm | 148/1900 | ||||
No.of cylinder | 4 | |||||
Bore×stroke | mm | 90×100 | ||||
Displacement | L | 2.54 | ||||
Overall dimensions
| fork A1 | mm | 3918 | |||
Overall width | mm | 1227 | ||||
Overhead height H3 | mm | 2090 | ||||
Mast extended height H2 | mm | 2065 | ||||
Mast extended height H1 | mm | 4272 | ||||
Lift height | mm | 3000 | ||||
Free lift height B | mm | 160 | ||||
Fork size | mm | 1070×125×45 | 1070×125×45 | |||
Mast tilt angle | deg | 6/12 | ||||
Front overhang | mm | 495 | ||||
Turning radius | mm | 2400 | ||||
Travel speed(full load/no load) | Km/h | |||||
Lift speed with full load | Mm/sec | 450 | ||||
Max.grade ability | % | 20 | ||||
Self weight | kg | 4370 | ||||
tires | Front | 28×9-15-12PR | ||||
Rear | 6.50-10-10PR | |||||
Tread | Front | mm | 1000 | |||
Rear | mm | 970 | ||||
Wheelbase A3 | mm | 1700 | ||||
Gound clearan- Ce(fullload/noload) | Mast C | mm | 110 | |||
Frame D | mm | 135 | ||||
- Size: 2704mmx1226mmx2140mm
- Place of Origin: Jining,China
- Brand Name: Construction Machinery
- Model Number: SF30
- Weight: 3000.000 kg
- :
- :
- :
- :
- :
- :
- :

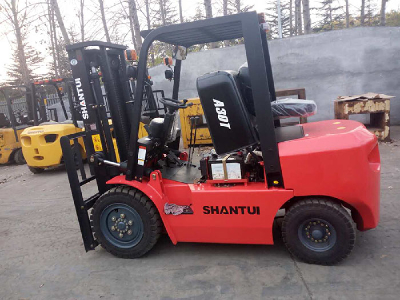

Shantui forklift main technical performance characteristics:
1. The introduction of international advanced technology, superior performance, reliable quality.
2. The use of streamlined surface design, machine nice.
3. Intelligent electronic monitoring instrument combination, high reliability, high accuracy.
4.Electrical system adopts special sealing structure, safe and reliable.
5. Sealed shock absorption structure design, machine vibration is small, low noise.
Packaging & Delivery
Packaging Details:
export standard packing, water proof,damp proof and mould proof and fumigation-free
Delivery Detail:
1-2 days after order confirmation
