- Size: 3779mm-1226mm-4272mm
- Place of Origin: Jining,China
- Brand Name: Construction Machinery
- Model Number: SF100
- Weight: 5000.000 kg
- :
- :
- :
- :
- :
- :
- :

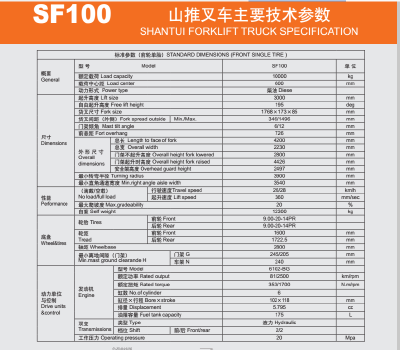

Standard Dimension (FRONT SINGLE TIRE) | ||||
Model | SF100 | Unit | ||
General | Load capacity | 10000 | km | |
Load center | 600 | mm | ||
Power | ||||
Lift size | 3000 | mm | ||
Free lifting height | 195 | deg | ||
Fork size | 1768×173×85 | mm | ||
Fork spread outside | 346/1496 | mm | ||
Dimensions | Mast tilt angle | 6/12 | mm | |
Fort overhang | 726 | mm | ||
Length to face of fork | 4200 | mm | ||
Overall width | 2230 | mm | ||
Overall dimensions | Overall height fork lowered | 2800 | mm | |
Performance | Overall height fork raised | 4426 | mm | |
Overhead guard height | 2497 | mm | ||
No load/full load | Travel speed | 26/28 | km/h | |
Lift speed | 360 | mm/sec | ||
Max.gradeability | 20 | % | ||
Self weight | 12300 | kg | ||
Tires | Front | 9.00-20-14PR | ||
Rear | 9.00-20-14PR | |||
Undercarriage | Tread | Front | 1600 | mm |
Rear | 1722.5 | mm | ||
Wheelbase | 2800 | mm | ||
| Mast G | 245/205 | mm | |
Frame N | 240 | mm | ||
Model | 6102-BG | |||
Rated output | 81/2500 | km/rpm | ||
Engine | Rated torque | 353/1700 | N.m/rpm | |
Drive units &control | No.of cylinder | 6 | ||
102×118 | mm | |||
Displacement | 5.795 | cc | ||
Fuel tank capacity | 175 | L | ||
Type | Hydraulic | |||
Transmissions | Shift | 2/2 | ||
Operating pressure | 20 | Mpa | ||
- Size: 3779mm-1226mm-4272mm
- Place of Origin: Jining,China
- Brand Name: Construction Machinery
- Model Number: SF100
- Weight: 5000.000 kg
- :
- :
- :
- :
- :
- :
- :

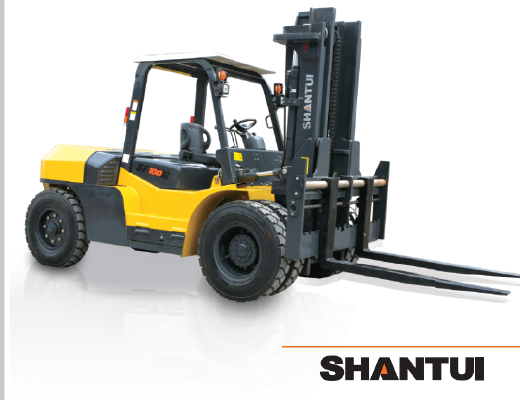

Shantui forklift main technical performance characteristics:
1. The introduction of international advanced technology, superior performance, reliable quality.
2. The use of streamlined surface design, machine nice.
3. Intelligent electronic monitoring instrument combination, high reliability, high accuracy.
4.Electrical system adopts special sealing structure, safe and reliable.
5. Sealed shock absorption structure design, machine vibration is small, low noise.
Packaging & Delivery
Packaging Details:
export standard packing, water proof,damp proof and mould proof and fumigation-free
Delivery Detail:
1-2 days after order confirmation
